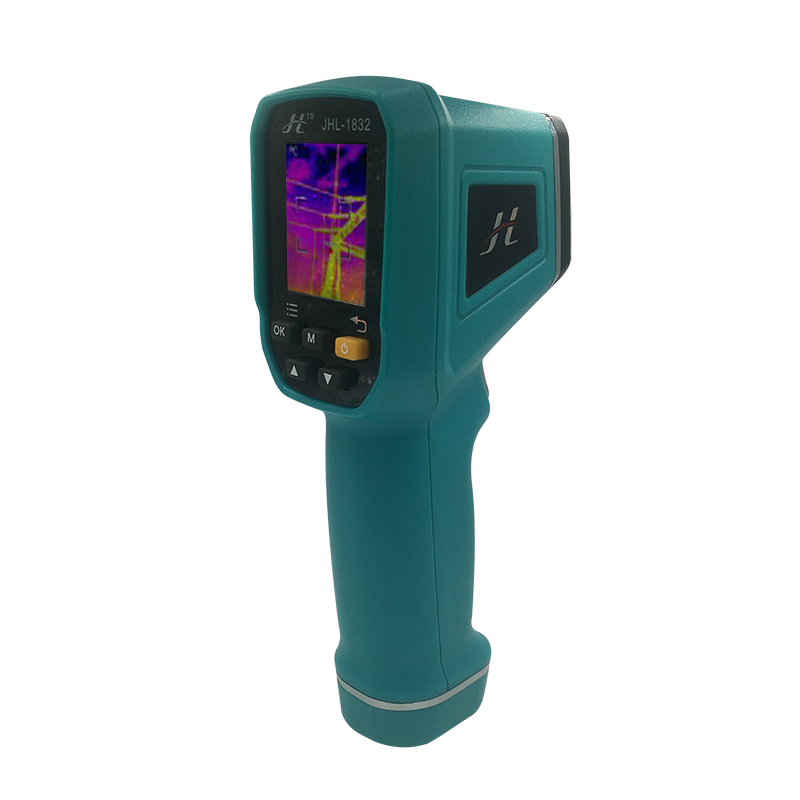

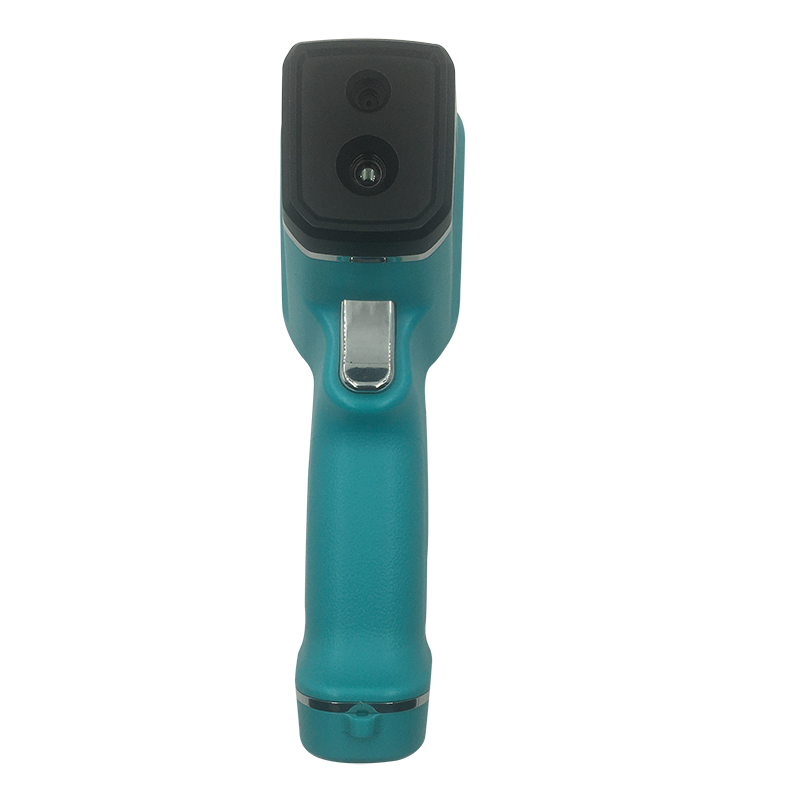

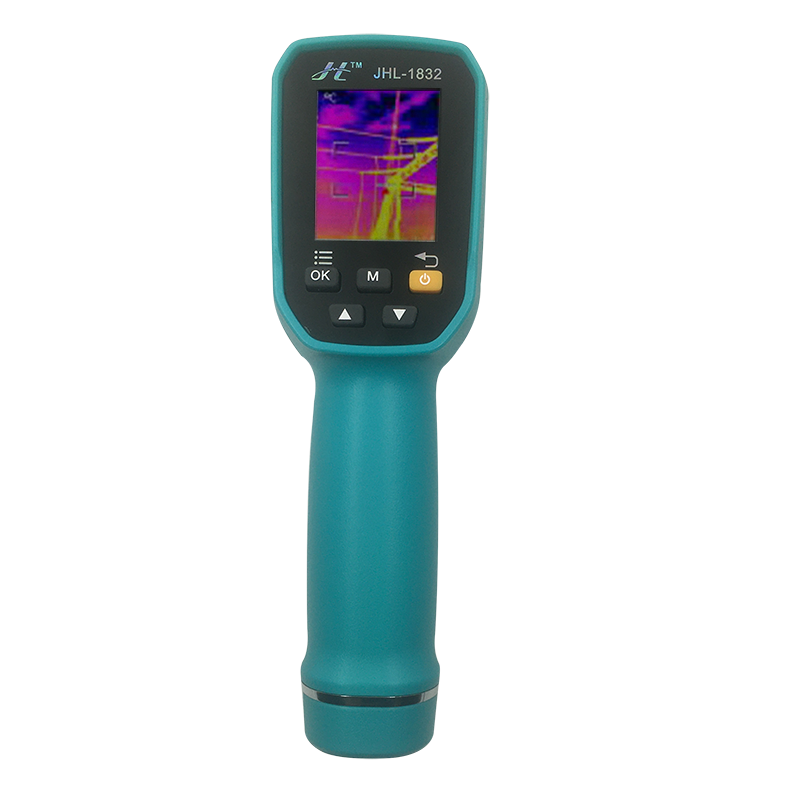

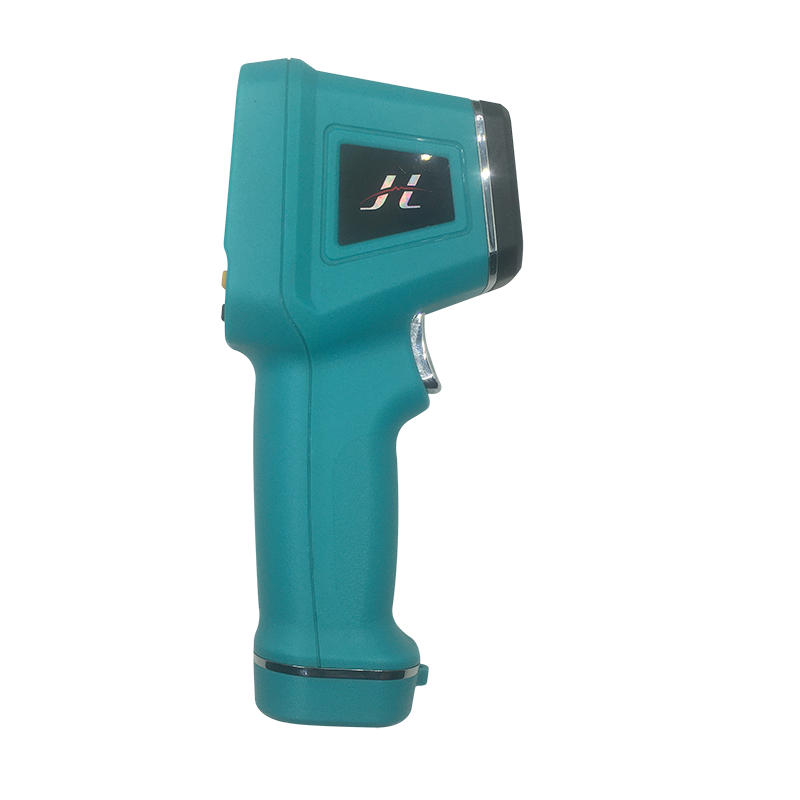

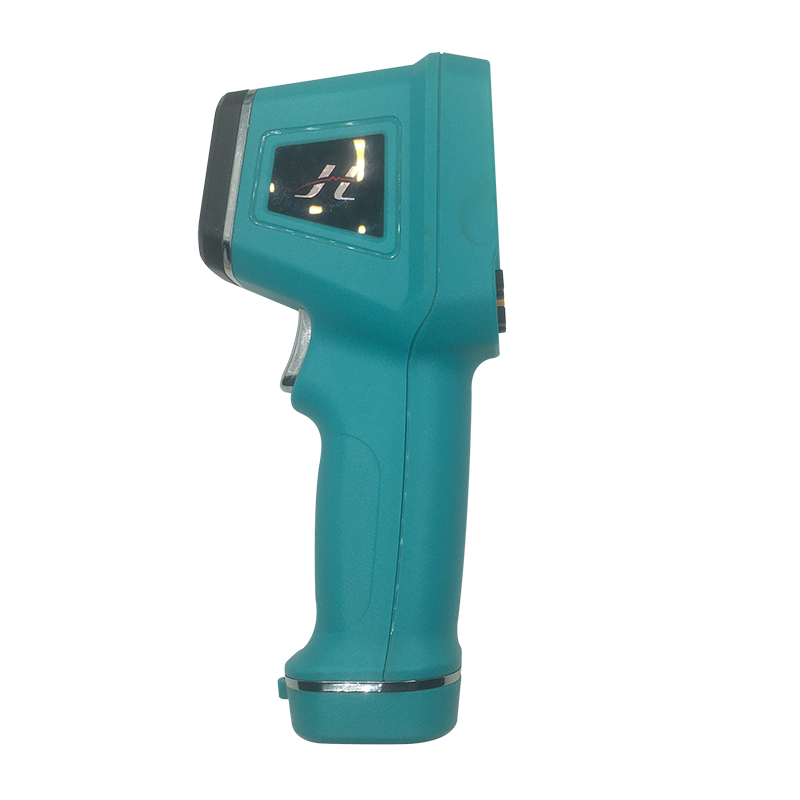

Infrared Thermal Camera

Product Model: JHL1832



Product Features:

.



User’s Manual Download    Purchase On-line

Technical specifications:


Model JHL1832
Temperature range -20°C~400°C
Basic preciseness <100°C ±± 2°C  ,   >100°C±± 2°C
Emissivity 0.01~1.00
D:S (distance factor) z
Response time 200ms
Display mode Thermal imagery, thermal mixing, digital camera
Palette Iron oxide red, rainbow, gray
Mixing setting 0% (fully thermal imaging),25%,50%,75%,100% (fully visible light)
Wave length range 8~14µm
Sensitivity of thermal imaging 0.15°C
Focusing method Free focus
Saved image format BMP
Optimum fusion distance >0.5M
Auto power-off Yes (time can be set)
Dimensions 175x83x83mm


*Please kindly understand that the product specifications may be changed without notice.
